RSII 2306 Race Spec - Brushless Motor


RSII 2306 Race Spec - Brushless Motor

Specifications

  • Framework: 12N14P

  • Length: 30.2mm

  • Diameter: 27.7mm

  • No. of cells: 3-4s 2300-2700kv range

  • No. of cells: 3-6s 1500-1900kv range

  • Propeller: 5" - 5.5"

  • Light Weight: 26.6g (W/O Silicone Wire)

  • Prop adapter: M5

  • Bearing Shaft: 4mm

  • Shaft Thread: CW and CCW

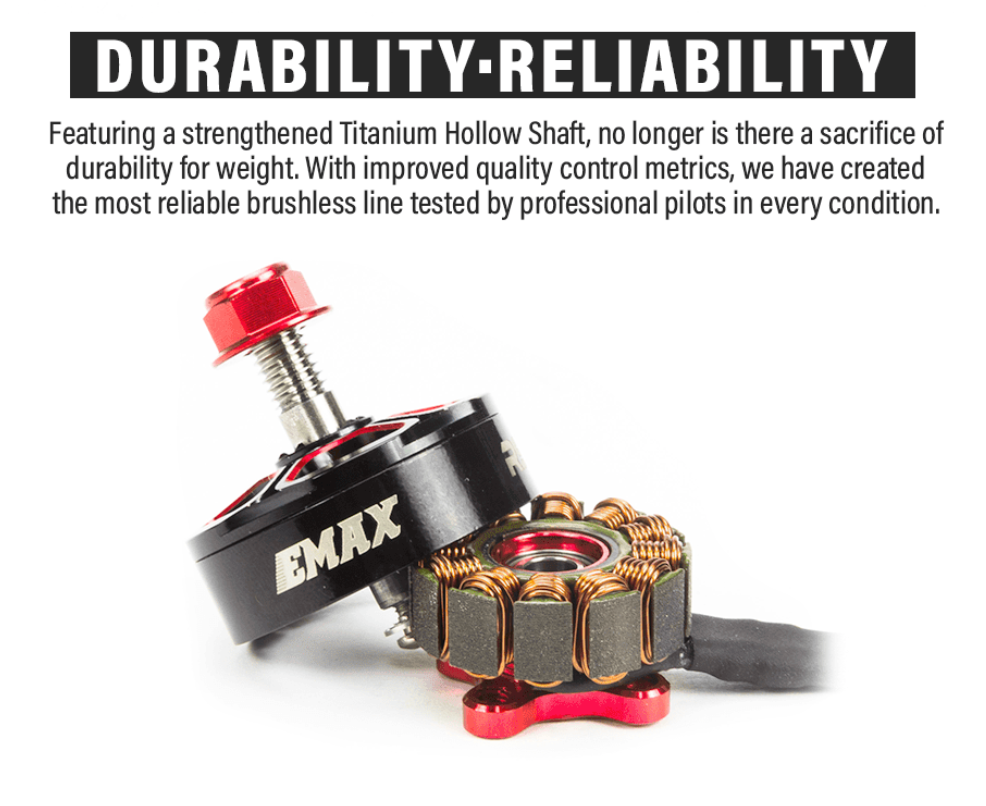

Feature

  • EZO bearing

  • Titanium shaft

  • Dual anodizing

  • 16x16mm hole pattern

  • Single copper winding

  • 115mm 20 AWG silicone wire

Package Includes

  • 5X M3X7 Screw

  • 5X M3X6 Screw

  • 1X Aluminum M5 nylock nut

  • 1X Washer and screw for shaft
